DollyONE
Ultra portable, motorized table-top dolly to create linear or curved camera motions on flat surfaces + wireless connectivity with edelkrone motorized heads.
Watch Video
Tech specs
6.3 x 6.3 x 2.26 in (160 x 160 x 57.5mm)
3.52 lb (1.6 kg)
15 lb (6.8 kg) or less.
3/8"-16 mounting screw on top.
x2 Step motor with ultra high-res encoders.
Requires x1 Canon LP-E6 type battery to operate. Battery bracket included. Battery not included.
With 14.4 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 2 hours (continuously at full speed)
Shoots 12000 photographs (in Time-Lapse mode)
2.5 mm (shutter trigger cable sold seperately)
HeadONE (Both in single or dual modes), Pan PRO, HeadPLUS (v2 & v1), HeadPLUS PRO (v2 & v1)
2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
iOS 11.0 or later & Android 5.0 or later
CNC machined aluminum and stainless steel components.
2 different motion capabilities
Linear virtual track
DollyONE provides linear slides by default. You can either use it for regular slide motion or dolly in/out shots. You can easily select several points on the straight line and make DollyONE slide to any of those points. You can also put DollyONE in a loop between any of the two points.
Curved virtual track (360°)
DollyONE can create a circular path around any target you choose. The easy path creation wizard will let you create the desired curved track easily. No measuring tools required. You can later select several points on the curved path and make DollyONE go to any of them for amazing parallax shots. You can also put it in a loop between any two points for interview shots.

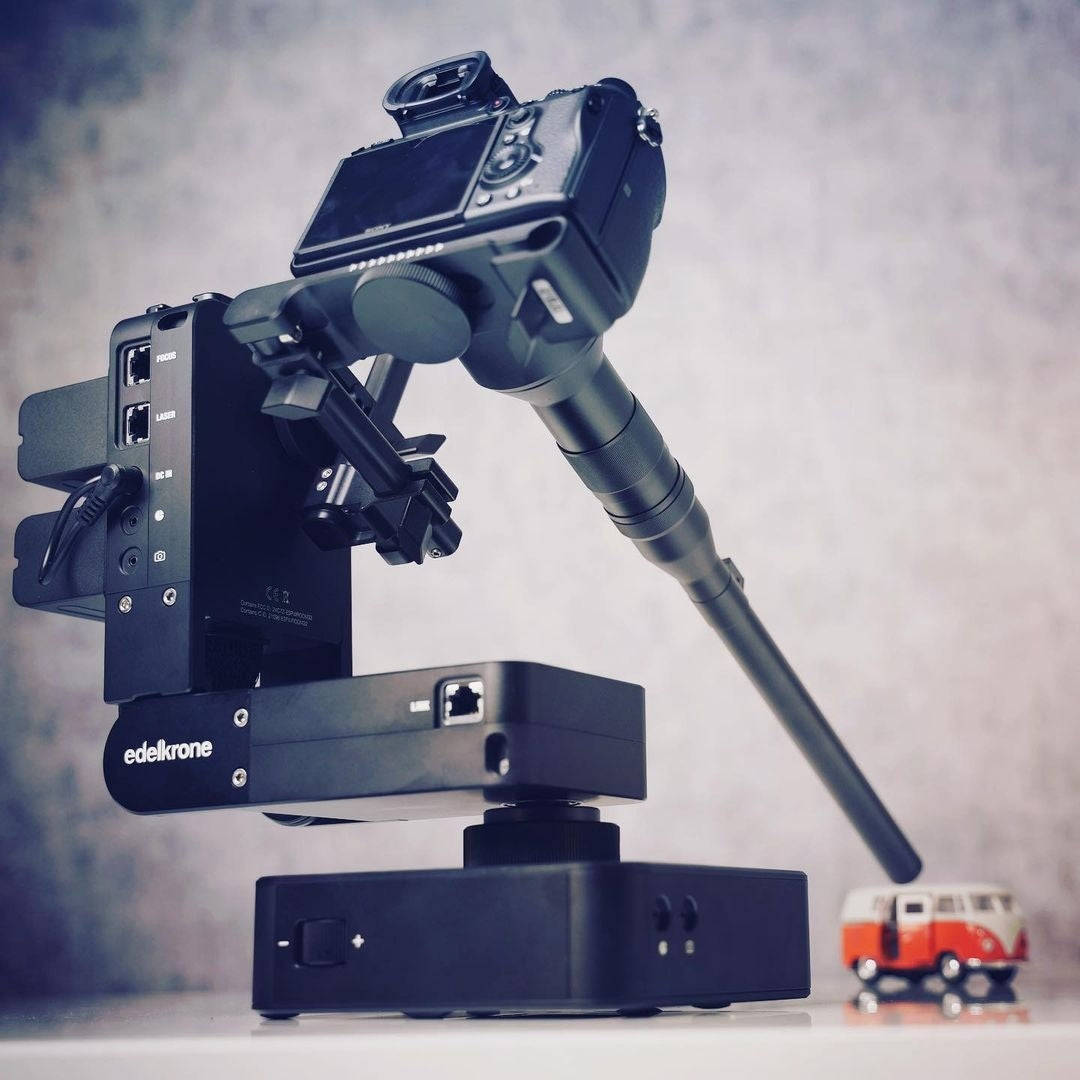

Connects wirelessly to edelkrone Heads
Having a motorized head onDollyONEopens the door to amazing 2-, 3- or 4-axis camera motions which can be easily programmed and repeated. You can record never-before-seen, amazing motion time-lapses and visual effects shots with these combinations. The devices pair instantly in the background while using the same App or controller to control all devices together.
Super easy time-lapse programming
Setting up a motion time-lapse is the easiest with edelkrone App. In your time-lapse videos, you can have a simple transition between two keyposes or you can convert a recorded complex camera motion into a time-lapse with a single button. You can use edelkrone’s unique Dynamic Interval and Dynamic Step Size Technologies to introduce never-before-seen effects to your time-lapses which bend the speed of time and speed of camera motion independently of each other.
Watch Video
Operate with the edelkrone App
edelkrone App cleverly scans the available devices in its surroundings and pairs with them automatically, giving you a single screen to control all devices together.
The interface is extremely simple.
The App shows you this control screen when there is only one motorized dolly discovered around. Notice the path button on the side which takes you into path creation wizard.
When you combine your Dolly with the HeadPLUS, the App gives you this 5-axis control screen including the focus adjustment. Notice the Target Mode button also becomes available at the bottom for smart target tracking.
This is the time-lapse screen. First, enter your Record Time & Play Time and your FPS settings. Next, set the same shutter speed with your camera in the app & set the interval. Lastly, select the starting and ending keyposes. This way you will achieve a nice motion time-lapse video transitioning between both keyposes.
The App shows you this control screen when there is only one motorized dolly discovered around. Notice the path button on the side which takes you into path creation wizard.
When you combine your Dolly with the HeadPLUS, the App gives you this 5-axis control screen including the focus adjustment. Notice the Target Mode button also becomes available at the bottom for smart target tracking.
This is the time-lapse screen. First, enter your Record Time & Play Time and your FPS settings. Next, set the same shutter speed with your camera in the app & set the interval. Lastly, select the starting and ending keyposes. This way you will achieve a nice motion time-lapse video transitioning between both keyposes.
